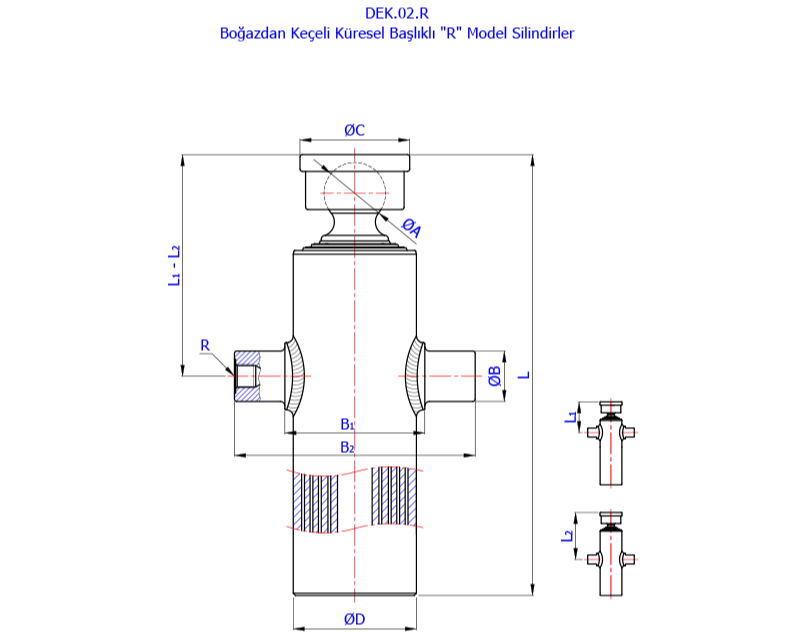

Boğazdan Keçeli Küresel Başlıklı (R Serisi)
Kapasite Tablosu
| Kod |
Kademe |
Strok (Ls) (mm) |
L (mm) |
L1 (mm) |
L2 (mm) |
ØA |
ØB |
B1 |
B2 |
ØC |
ØD |
R |
Yağ Hacmi (lt) |
Ağırlık (kg) |
| DEK.02.80.0390.R | 2 | 390 | 363 | 140 | | 44 | 25 | 98 | 148 | 75 | 80 | 16x1,5 | 1 | 11,7 |
| DEK.02.80.0500.R | 2 | 500 | 418 | 140 | | 44 | 25 | 98 | 148 | 75 | 80 | 16x1,5 | 1,3 | 12 |
| DEK.02.80.0620.R | 2 | 620 | 479 | 147 | | 44 | 40 | 100 | 180 | 75 | 80 | 1/2" | 1,6 | 15 |
| DEK.02.80.0700.R | 2 | 700 | 519 | 140 | | 44 | 40 | 100 | 180 | 75 | 80 | 1/2" | 2 | 16 |
| DEK.02.80.0820.R | 2 | 820 | 579 | 147 | | 44 | 40 | 100 | 180 | 75 | 80 | 1/2" | 2,1 | 18 |
| DEK.02.95.0595.R | 2 | 595 | 496 | 167 | | 55 | 45 | 115 | 205 | 95 | 95 | 1/2" | 2,5 | 23 |
| DEK.02.95.0795.R | 2 | 795 | 596 | 167 | | 55 | 45 | 115 | 205 | 95 | 95 | 1/2" | 3,3 | 26 |
| DEK.02.95.0570.R | 3 | 570 | 363 | 150 | | 44 | 45 | 115 | 205 | 75 | 95 | 1/2" | 1,9 | 15 |
| DEK.02.95.0910.R | 3 | 910 | 479 | 150 | | 44 | 45 | 115 | 205 | 75 | 95 | 1/2" | 3,1 | 20 |
| DEK.02.105.0950.R | 2 | 950 | 684 | 157 | 247 | 66 | 45 | 128 | 218 | 115 | 108 | 1/2" | 5,1 | 43 |
| DEK.02.105.0875.R | 3 | 875 | 496 | 170 | 260 | 55 | 45 | 128 | 218 | 95 | 108 | 1/2" | 4,5 | 28 |
| DEK.02.105.1060.R | 3 | 1060 | 559 | 170 | 260 | 55 | 45 | 128 | 218 | 95 | 108 | 1/2" | 5,5 | 31 |
| DEK.02.105.1190.R | 4 | 1190 | 479 | 153 | 243 | 44 | 45 | 128 | 218 | 75 | 108 | 1/2" | 5 | 25 |
| DEK.02.128.0930.R | 2 | 930 | 709 | 187 | 277 | 79 | 45 | 148 | 238 | 135 | 128 | 1/2" | 7,8 | 41 |
| DEK.02.128.0895.R | 3 | 895 | 508 | 160 | 250 | 66 | 45 | 148 | 238 | 115 | 128 | 1/2" | 6,2 | 37 |
| DEK.02.128.1160.R | 3 | 1160 | 597 | 160 | 250 | 66 | 45 | 148 | 238 | 115 | 128 | 1/2" | 8 | 48 |
| DEK.02.128.1300.R | 3 | 1300 | 643 | 160 | 250 | 66 | 45 | | | | | | | |
