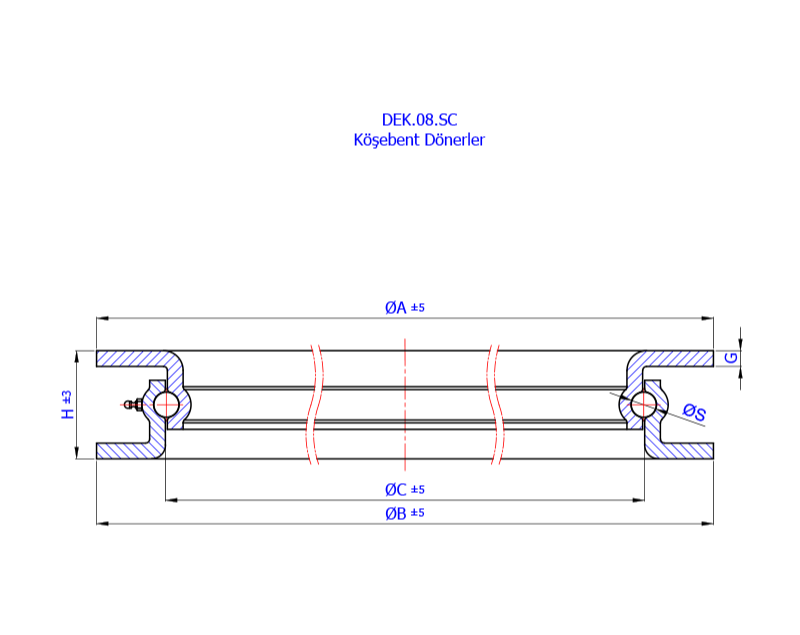

Bilya Yataklı Sac Dönerler
Kapasite Tablosu
| Kod |
ØA±5 |
ØB±5 |
ØC±5 |
H±3 |
G |
ØS |
Kapasite (Ton) |
Ağırlık (kg ±1) |
| DEK.08.55.300.8.SC.D | 300 | 300 | 235 | 55 | 8 | 7/16" | 0,5 | 7 |
| DEK.08.55.300.8.SC | 300 | 300 | 230 | 55 | 8 | 1/2" | 0,3 | 6,5 |
| DEK.08.55.400.6.SC | 400 | 400 | 330 | 55 | 6 | 1/2" | 0,4 | 7,5 |
| DEK.08.55.400.8.SC | 400 | 400 | 330 | 55 | 8 | 1/2" | 0,75 | 9 |
| DEK.08.55.500.8.SC | 500 | 500 | 420 | 55 | 8 | 1/2" | 1 | 12,5 |
| DEK.08.55.600.8.SC | 600 | 600 | 520 | 55 | 8 | 1/2" | 1,5 | 16,5 |
| DEK.08.55.650.8.SC | 650 | 650 | 570 | 55 | 8 | 1/2" | 1,75 | 17 |
| DEK.08.55.700.8.SC | 700 | 700 | 620 | 55 | 8 | 1/2" | 2 | 19 |
| DEK.08.55.800.8.SC | 800 | 800 | 720 | 55 | 8 | 1/2" | 2,5 | 23 |
| DEK.08.70.900.8.SC | 900 | 900 | 805 | 70 | 8 | 1/2" | 3,5 | 29 |
| DEK.08.70.1000.8.SC | 1000 | 1000 | 905 | 70 | 8 | 9/16" | 4,5 | 35 |
| DEK.08.70.1050.8.SC | 1050 | 1050 | 955 | 70 | 8 | 9/16" | 5 | 36 |
| DEK.08.70.1100.8.SC | 1100 | 1100 | 1005 | 70 | 8 | 5/8" | 6 | 37 |
| DEK.08.80.1100.8.SC | 1100 | 1100 | 1005 | 80 | 8 | 5/8" | 8 | 39 |
