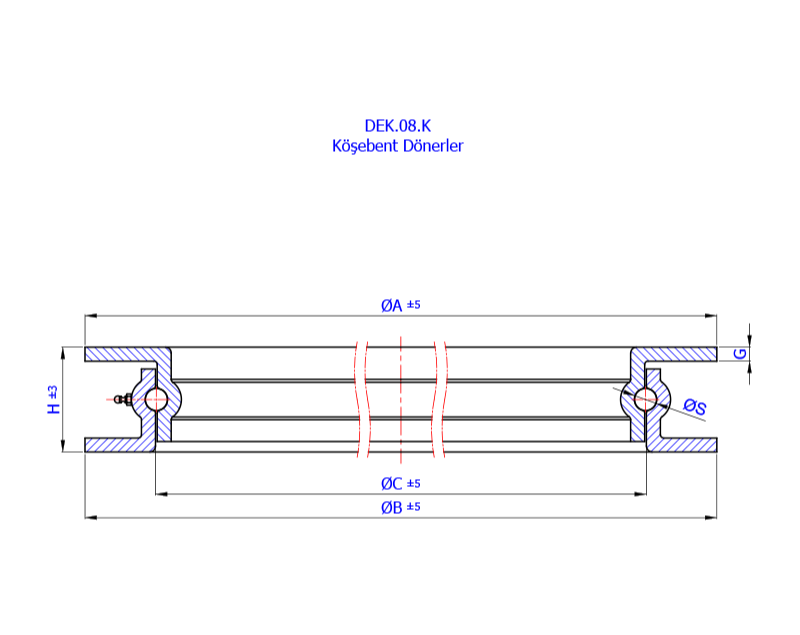

Bilya Yataklı Köşebent Dönerler
Kapasite Tablosu
| Kod |
ØA±5 |
ØB±5 |
ØC±5 |
H±3 |
G |
ØS |
Kapasite (Ton) |
Ağırlık (kg ±1) |
| DEK.08.55.475.8 | 460 | 475 | 385 | 55 | 8 | 1/2" | 0,5 | 12 |
| DEK.08.55.750.8 | 750 | 750 | 670 | 55 | 8 | 1/2" | 2,2 | 21 |
| DEK.08.55.850.8 | 850 | 850 | 770 | 55 | 8 | 1/2" | 3 | 25 |
| DEK.08.70.900.8 | 900 | 900 | 805 | 70 | 8 | 1/2" | 3,5 | 31 |
| DEK.08.70.0950.8 | 950 | 950 | 855 | 70 | 8 | 1/2" | 4 | 35 |
| DEK.08.70.1000.8 | 1005 | 1000 | 905 | 70 | 8 | 1/2" | 4,5 | 36 |
| DEK.08.70.1050.8 | 1055 | 1050 | 955 | 70 | 8 | 9/16" | 5 | 38 |
| DEK.08.70.1100.8 | 1105 | 1100 | 1005 | 70 | 8 | 5/8" | 6 | 39 |
| DEK.08.70.1200.8 | 1200 | 1200 | 1105 | 70 | 8 | 5/8" | 10 | 45 |
| DEK.08.70.1000.10 | 980 | 1000 | 905 | 70 | 10 | 9/16" | 8 | 41 |
| DEK.08.70.1100.10 | 1085 | 1105 | 1005 | 70 | 8 | 5/8" | 10 | 45 |
| DEK.08.70.1200.10 | 1200 | 1200 | 1100 | 70 | 10 | 5/8" | 15 | 54 |
| DEK.08.80.1100.8 | 1100 | 1100 | 1000 | 80 | 8 | 5/8" | 8 | 45 |
| DEK.08.90.1100.8 | 1100 | 1100 | 985 | 90 | 8 | 5/8" | 8 | 48,5 |
| DEK.08.90.1200.8 | 1200 | 1200 | 1080 | 90 | 8 | 5/8" | 8,5 | 51 |
| DEK.08.90.1100.10 | 1100 | 1100 | 985 | 90 | 10 | 13/16" | 10 | 60 |
| DEK.08.90.1200.10 | 1200 | 1200 | 1085 | 90 | 10 | 13/16" | 12 | 67 |
