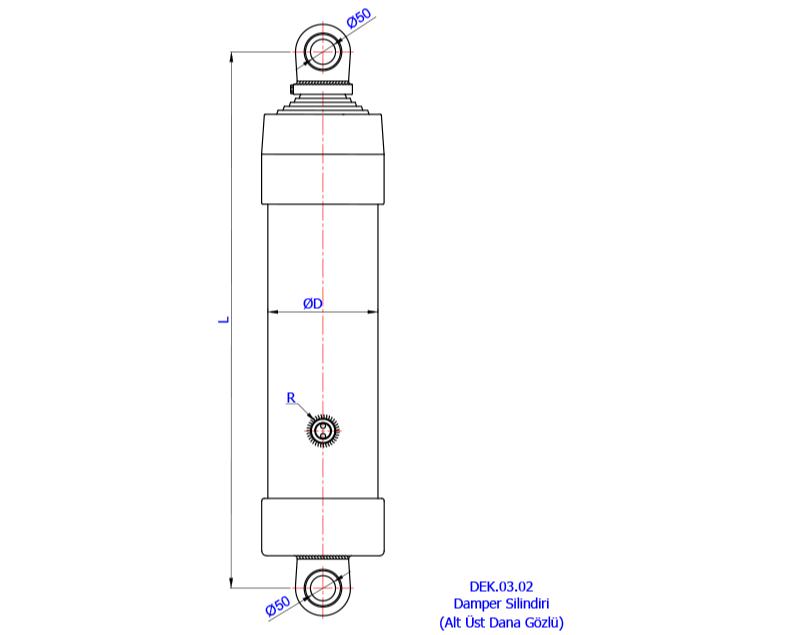

Damper Silindiri (Alt Üst Dana Gözlü)
Kapasite Tablosu
| Kod |
Kademe |
L (mm) |
L + Ls (mm) |
Strok (Ls) (mm) |
ØD |
R |
Yağ Hacmi (lt) |
Kapasite (ton) |
Ağırlık (kg) |
| DEK.03.02.140.01 | 3 | 1200 | 3680 | 2480 | 140 | 3/4” | 25 | 18 | 83 |
| DEK.03.02.165.01 | 3 | 1500 | 4860 | 3360 | 165 | 3/4” | 44 | 32 | 146 |
| DEK.03.02.165.02 | 3 | 1650 | 5460 | 3810 | 165 | 3/4” | 50 | 32 | 163 |
| DEK.03.02.165.03 | 4 | 1200 | 4600 | 3400 | 165 | 3/4” | 36 | 33 | 124 |
| DEK.03.02.165.04 | 4 | 1360 | 5360 | 4000 | 165 | 3/4” | 43 | 35 | 142 |
| DEK.03.02.165.05 | 4 | 1500 | 5980 | 4480 | 165 | 3/4” | 48 | 35 | 161 |
| DEK.03.02.190.01 | 3 | 1500 | 4860 | 3360 | 190 | 1” | 56 | 28 | 163 |
| DEK.03.02.190.02 | 4 | 1210 | 4610 | 3400 | 190 | 1” | 58 | 30 | 158 |
| DEK.03.02.190.03 | 4 | 1360 | 5360 | 4000 | 190 | 1” | 60 | 32 | 180 |
| DEK.03.02.190.04 | 4 | 1510 | 5990 | 4480 | 190 | 1” | 65 | 35 | 193 |
| DEK.03.02.215.01 | 5 | 1500 | 7100 | 5600 | 215 | 1” | 96 | 40 | 320 |
| DEK.03.02.245.01 | 5 | 1500 | 7100 | 5600 | 245 | 1” | 128 | 50 | 380 |
